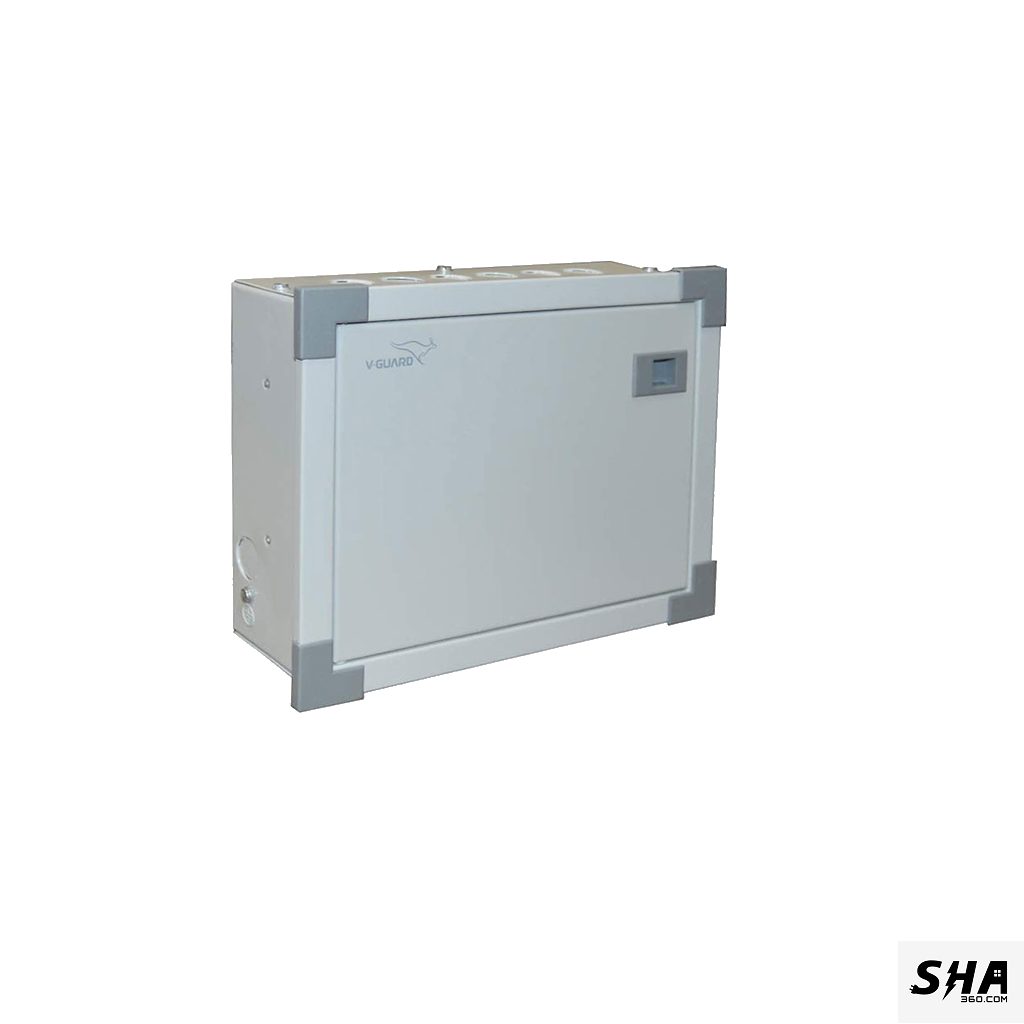

Vguard 8 Way Standard (8 MCBs-SP) SPN Distribution Board Double Door - GRSE01-8w
Specifications & Features:-
- Part no: GRSE01-8w
- IP43, 8Way SPN (Single Phase Netural) DB
- DB - Distribution Board, IS standard
- Suitable for Flush Mounting and Surface Mounting
- With 63A Copper Busbar for each phase
- Cable ties for Cable management
- Fully insulated busbar & shrouded Neutral bars
- Improved Pan assembly for easy of installation
- Prefitted masking sheet, Reversible Door
- Suitable to mount MCB, Isolator, RCCB, RCBO
- Packed dimension: 28x23x10cm
DB's are used to connect the main incomer on it and distribute the power to each load by using of MCB's, RCCB, and other protection device at commercial, industrial or residential place. The loads/MCBs/RCCBs rating must be designed and selected in accordance with IEC/IS standard based upon the application. Enclosure Trate, Tamp, protection ratings must be calculated and designed accordingly before installation for safety purpose. Use proper wirings size for incomer and outgoing cable as indicated Amps & Watts range and ensure proper earthing are done on entire loops properly to all meet safety clauses.
