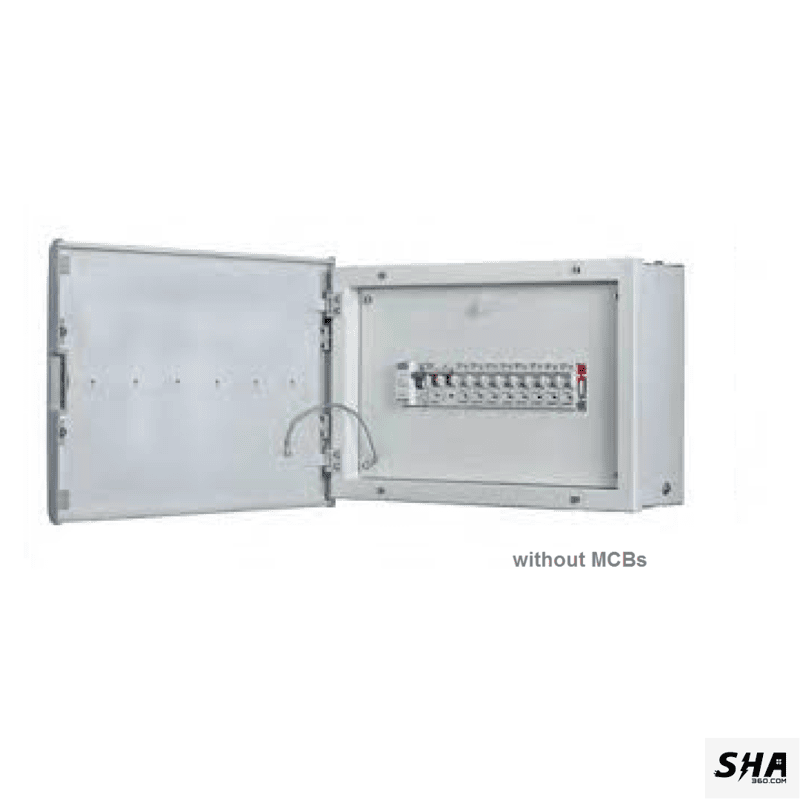

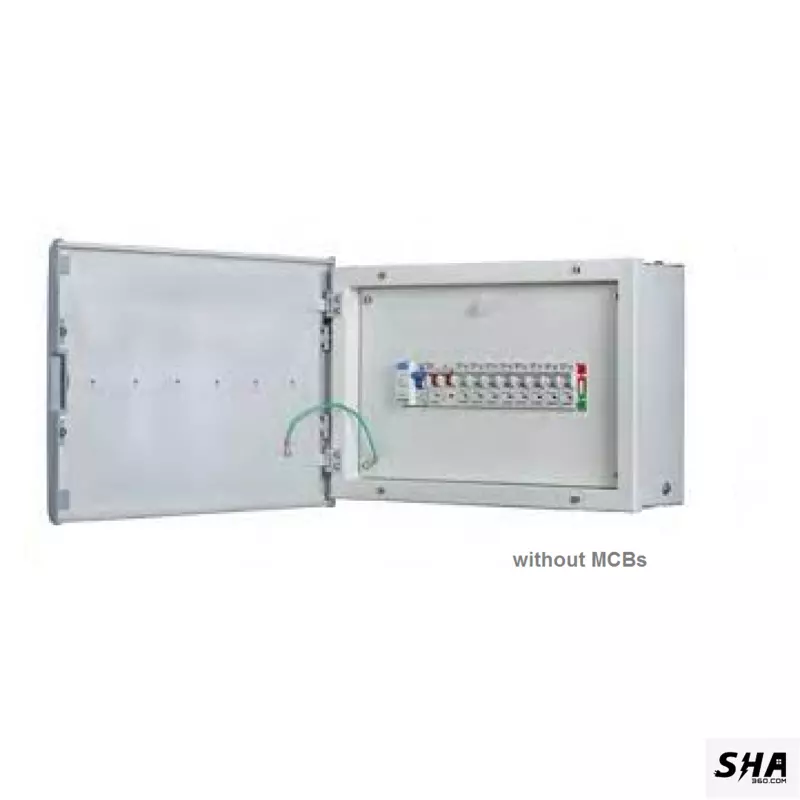

Vguard 12 Way Premium (12 MCBs-SP) SPN Distribution Board Double Door - GRVE01-12W
Specifications & Features:-
Part no: GRVE01-12W
IP43, 12Way SPN (Single Phase Netural) DB
DB - Distribution Board, IS standard
Suitable for Flush Mounting and Surface Mounting
With 63A Copper Busbar for each phase
Cable ties for Cable management
Fully insulated busbar & shrouded Neutral bars
Improved Pan assembly for easy of installation
Pre-fitted masking sheet, Reversible Door
Suitable to mount MCB, Isolator, RCCB, RCBO
Packaged dimension: 22x17x16cm
DB's are used to connect the main incomer on it and distribute the power to each load by using of MCB's, RCCB, and other protection device at commercial, industrial or residential place. The loads/MCBs/RCCBs rating must be designed and selected in accordance with IEC/IS standard based upon the application. Enclosure Trate, Tamp, protection ratings must be calculated and designed accordingly before installation for safety purpose. Use proper wirings size for incomer and outgoing cable as indicated Amps & Watts range and ensure proper earthing are done on entire loops properly to all meet safety clauses.
