SIEMCAS Wifi Smart PRO Series IR 4 Channel State Wireless WLAN Webserver SHA-SIS-PRO-XT1004D - Sha360

SIEMCAS Wifi Smart PRO Series IR 4 Channel State Wireless WLAN Webserver SHA-SIS-PRO-XT1004D

Where to use it?

1. I have already a smart home installed at my home but there are certain loads in a couple of rooms to be operated through webserver.

2. I have commercial shop G+1 and would like to connect all the lighting and fan to smart system which is to be operated from smartphone or computer and laptop locally and i don't want to connected these system in internet.

3. I have a food manufacturing unit which is around 5000sqft and want to make a centralized operation of certain non-critical loads and lighting loads.

4. I have water pumping system for my process applications and I need to have a smart operation without connecting internet for my operator.

5. I'm owner of tourism buses and want to make a smart operation at my buses without connecting internet and need a simple system.

6. And also it will help to save energy, and etc.,

PRO Wireless LAN Series Video Shorts:-

Quick demo in English Language:-

Quick demo - Watch out

Wifi Smart demo in Tamil YT Channel on Dec 2021:-

Video @ 2021 - Watch out

Wifi Smart demo in Tamil YT Channel on Nov 2022:-

Video @ 2022 - Watch out

More details about Siemcas:-

Smart Switch India - Watch out

SIEMCAS Wifi Smart PRO Series WLAN can be connected with your existing switches / load contact to operate those loads from your smartphone within the range of 200-300mtrs & multiple smartphone, web browser based dashboard accessing through existing networked or new one. 1 Year Warranty. Designed for long life span.

Features:-

1) Works with any smart phone.

2) User can control from Mobile, Laptop, Desktop and Tablet.

3) Multi-users can control the device at a time.

4) Easy configuration and installation

5) Robust design

6) 100% developed in India

7) 4-channel / Node device

8) 1500 watts each channel capacity, 750W(recommended)

9) 200 - 300 meters inbuilt Wifi range.

Your benefits:-

1) Cost saving

2) Energy saving

3) Fast response

4) Inbuilt Wi-Fi

5) Operational in single touch

Technical Specification:-

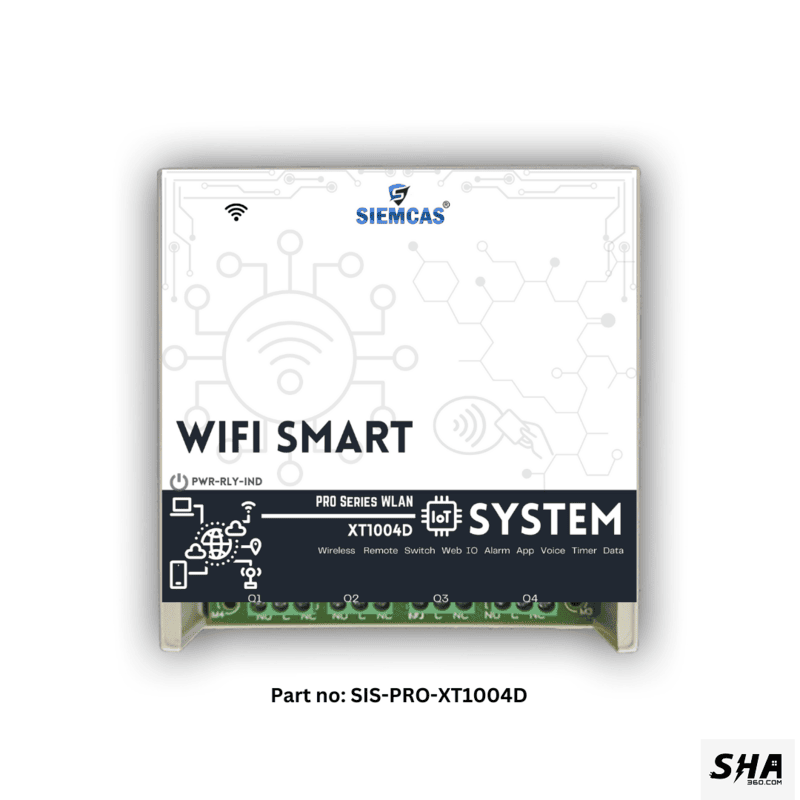

1. Part no: SHA-SIS-PRO-XT1004D

2. No of connection: 4nos

3. Channel rating: 230VAC, 7A each

4. Working Voltage: 12VDC

5. Power Source: 110-270VAC adapter (external)

6. Load per connection: 750W (Recommended)

7. Connectivity: WiFi-2.4GHz, IR

8. Mobile Functionality: Web Browser, IR

9. Support Services: AP Mode

10. Weight: 219 grams

11. Device Size: 4(H) x 4(W) x 2.25(D) inches

12. Enclosure Type: ABS, Din Rail/Rack Mount/Concealed

13. Package content: SIS-PRO-4N-NC/Adapter/IR remote/2nos clamp/ Guidelines details

Country of Origin: India

Warranty:-

Warranty - Offsite warranty 1 year against manufacturing defects from the date of receipt.
