SIEMCAS Wifi Smart PRO Series IR 4 Channel Retro Wireless LAN Webserver SHA-SIS-PRO-XT1004E

Where to use it?

1. I have already a smart home installed at my home but there are certain loads in a couple of rooms to be operated through a webserver.

2. I have a small commercial shop and would like to connect lights & fan to the smart system and operate it without connecting internet.

3. I have a food distribution unit which is around 1000sqft and wants to make a smart system with certain loads only.

4. I have fluid process applications and I need to have a smart operation without connecting internet for my operator.

5. I'm the owner of a transporting company and want to make a smart operation at my buses, truck, van etc., without connecting internet and need a simple system.

6. And also it will help to save energy, and etc.,

SIEMCAS Wifi Smart PRO Series Retro WLAN can be connected with your existing switches/load contact to operate those loads from your smartphone within the range of 200-300mtrs & multiple smartphone, web browser based dashboard accessing through existing networked or new one.

Codification:-

• Model: WLAN Retro Webserver

• Number of outputs: 4

• Function: Wireless Operation

• Access: IR, AP, Station, Web

• (Smart Wireless & WLAN Webserver)

• Type: Retrofit, Wall

• (Concealed / Surface)

Features:-

1) Works with any smart phone.

2) User can control from Mobile, Laptop, Desktop and Tablet.

3) Multi-users can control the device at a time.

4) Easy configuration and installation

5) Robust design

6) 100% developed in India

7) 4-channel / Node device

8) 1500 watts each channel capacity, 750W(recommended)

9) 200 - 300 meters inbuilt Wifi range.

Your benefits:-

1) Cost saving

2) Energy saving

3) Fast response

Technical Specification:-

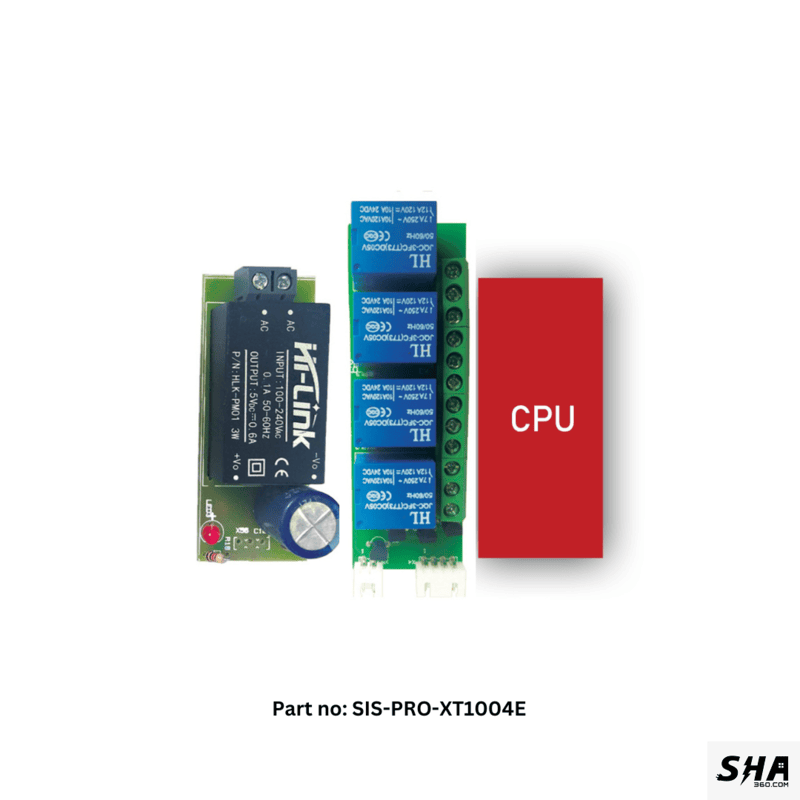

1. Part no: SHA-SIS-PRO-XT1004E

2. No of connection: 4nos

3. Channel rating: 230VAC, 7A each

4. Working Voltage: 12VDC

5. Power Source: 110-270VAC adapter (external)

6. Load per connection: 750W (Recommended)

7. Connectivity: WiFi-2.4GHz, IR

8. Mobile Functionality: Web Browser, IR

9. Support Services: AP Mode

10. Weight: 219 grams

Country of Origin: India

Warranty:-

Warranty - Offsite warranty 1 year against manufacturing defects from the date of receipt.
