SIEMCAS Wifi Smart NEO Series Retro NR 4 Channel Wireless Webserver SHA-SIS-NEO-XT1002A

Where to use it?

1. I have already a smart home installed at my home but there are certain loads in a couple of rooms to be operated through a webserver.

2. I have a small commercial shop and would like to connect lights & fan to the smart system and operate it without connecting internet.

3. I have a food distribution unit which is around 1000sqft and wants to make a smart system with certain loads only.

4. I have fluid process applications and I need to have a smart operation without connecting internet for my operator.

5. I'm the owner of a transporting company and want to make a smart operation at my buses, truck, van etc., without connecting internet and need a simple system.

6. And also it will help to save energy, and etc.,

SIEMCAS WiFi Smart Switch NEO Series Retro has designed to operate residential, commercial, industrial electrical loads such as Light, Fan, TV, 1/2"hp motor, Valve, Flood light etc., from Smartphone & Desktop. Each channel has been designed with 1500W however load connection rating would be 750w is recommended. All the connected loads can be operated from smartphones, Desktop & Existing Switches. WiFi Smart inbuilt wireless range is 100-300mtrs.

Codification:-

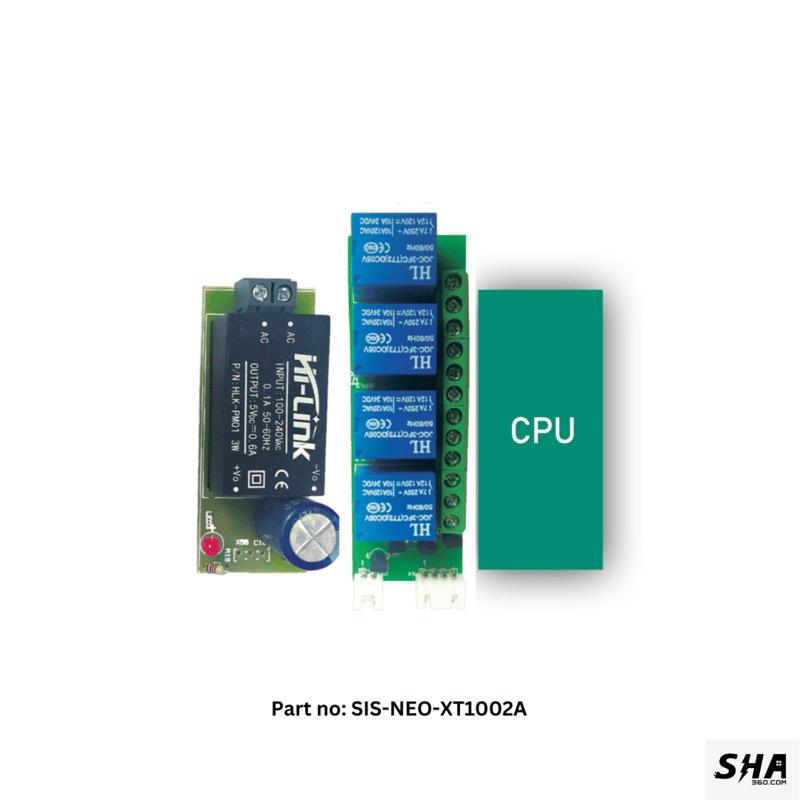

• Part no: SHA-SIS-NEO-XT1002A

• Model: NEO Retro

• Number of outputs: 4

• Function: Wireless Operation

• Access - AP, Webserver

• (Smart Wireless)

• Type: Retrofit, Wall

• (Concealed / Surface)

Features:-

1) Works with any smartphone

2) User can control from Smartphone or existing switches

3) Multi-users can control the device at a time

4) Easy configuration and installation

5) Robust design & user-friendly

6) 100% developed in India

Your benefits:-

1) Cost saving

2) Energy saving

3) Fast response

Technical Specification:-

1. No of connection: 4nos

2. Channel rating: 230VAC, 7A each

3. Working Voltage: 12VDC

4. Power Source: 110-270VAC adapter (external)

5. Load per connection: 750W (Recommended)

6. Connectivity: WiFi-2.4GHz, Direct

7. User Tools: Web Browser

8. Support Services: Android, IOS

9. Weight: 300 grams

10. Device Size: 4(H) x 4(W) x 2.25(D) inches

Warranty:-

Warranty - Offsite warranty of 1 year against manufacturing defects from the date of receipt.
