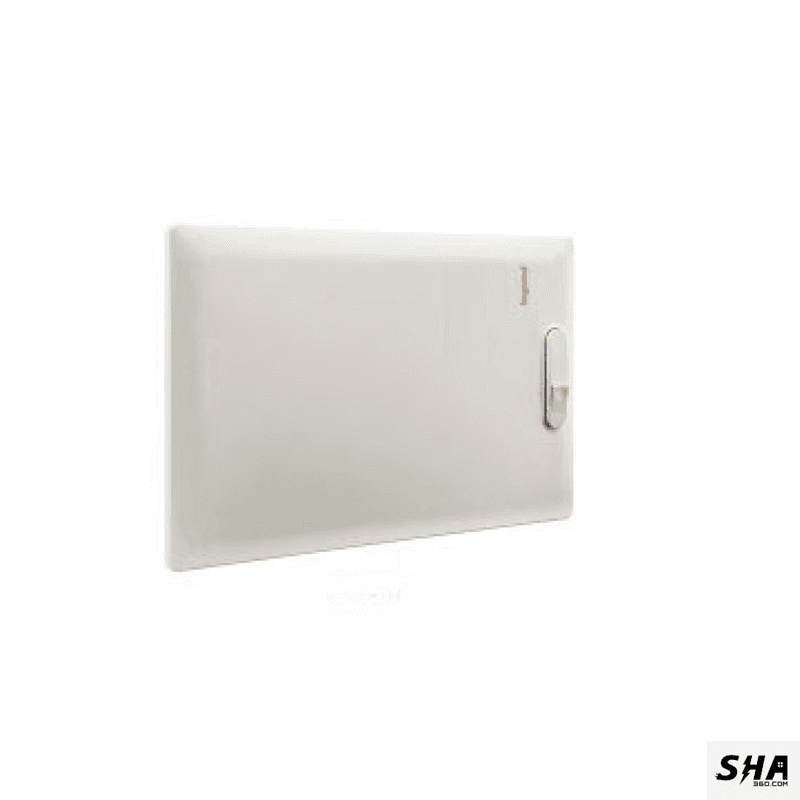

Legrand Ekinox 4 Way (8+12) TPN Distribution Board Double Door - 5076 70
Specifications & Features:-
Part no: 5076 70
No of modules provision: 20
As per IEC 61439-3
Suitable for Flush Mounting and Surface Mounting
With 100 A Copper Busbar
With Neutral bar, Earthbar and Cable ties for Cable management
Fully shrouded Neutral bars
Prefitted masking sheet
Reversible Door for IP 43 & IP 54 DB's
Packed dimension: 48x44x16cm
TPN DB's are used to connect the main incomer on it and distribute the power to each load by using of MCB's, RCCB, and other protection device at commercial, industrial or residential place. The loads/MCBs/RCCBs rating must be designed and selected in accordance with IEC/IS standard based upon the application. Enclosure Trate, Tamp, protection ratings must be calculated and designed accordingly before installation for safety purpose. Use proper wirings size for incomer and outgoing cable as indicated Amps & Watts range and ensure proper earthing are done on entire loops properly to all meet safety clauses.
