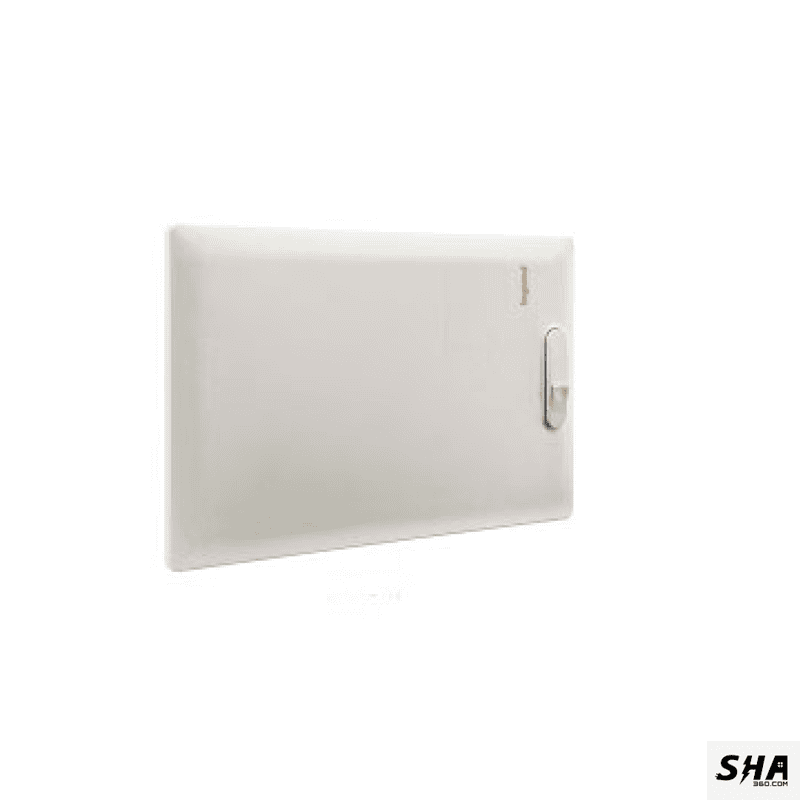

Legrand Ekinox 16 Way (16 MCBs-SP) SPN Distribution Board Double Door - 5076 13
Specifications & Features:-
Part no: 5076 13
IP43, 16Way SPN (Single Phase Netural) DB
DB - Distribution Board, IEC 61439-3
Suitable for Flush Mounting and Surface Mounting
With 100 A Copper Busbar for each phase
With Neutral bar and Earthbar
Cable ties for Cable management
Fully insulated busbar & shrouded Neutral bars
Improved Pan assembly for easy of installation
Prefitted masking sheet, Reversible Door
Suitable to mont MCB/Isolator/RCCB/RCBO
Packaged dimension: 50x30x17cm
DB's are used to connect the main incomer on it and distribute the power to each load by using of MCB's, RCCB, and other protection device at commercial, industrial or residential place. The loads/MCBs/RCCBs rating must be designed and selected in accordance with IEC/IS standard based upon the application. Enclosure Trate, Tamp, protection ratings must be calculated and designed accordingly before installation for safety purpose. Use proper wirings size for incomer and outgoing cable as indicated Amps & Watts range and ensure proper earthing are done on entire loops properly to all meet safety clauses.
