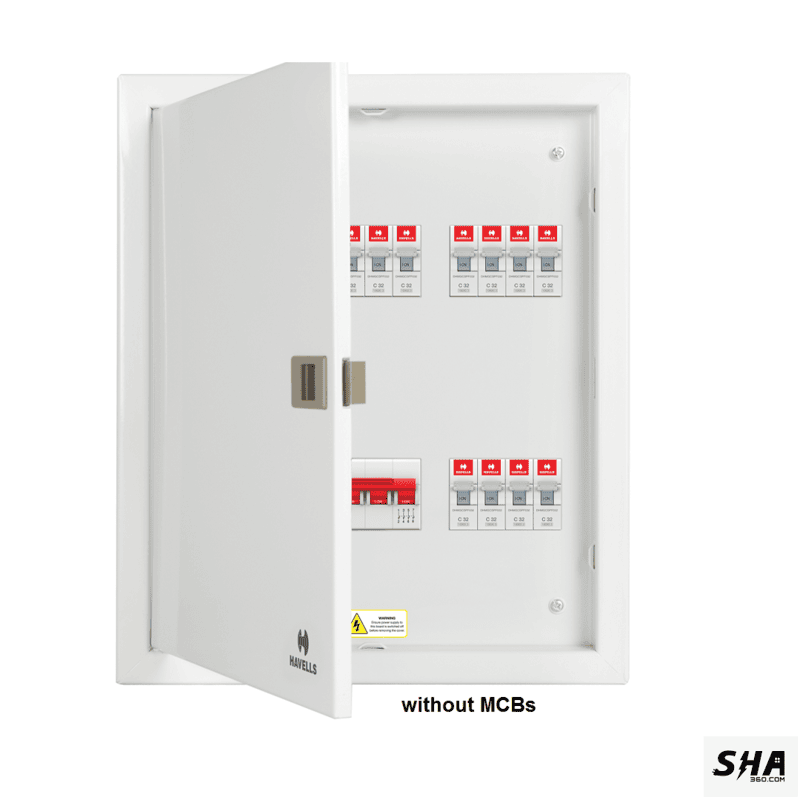

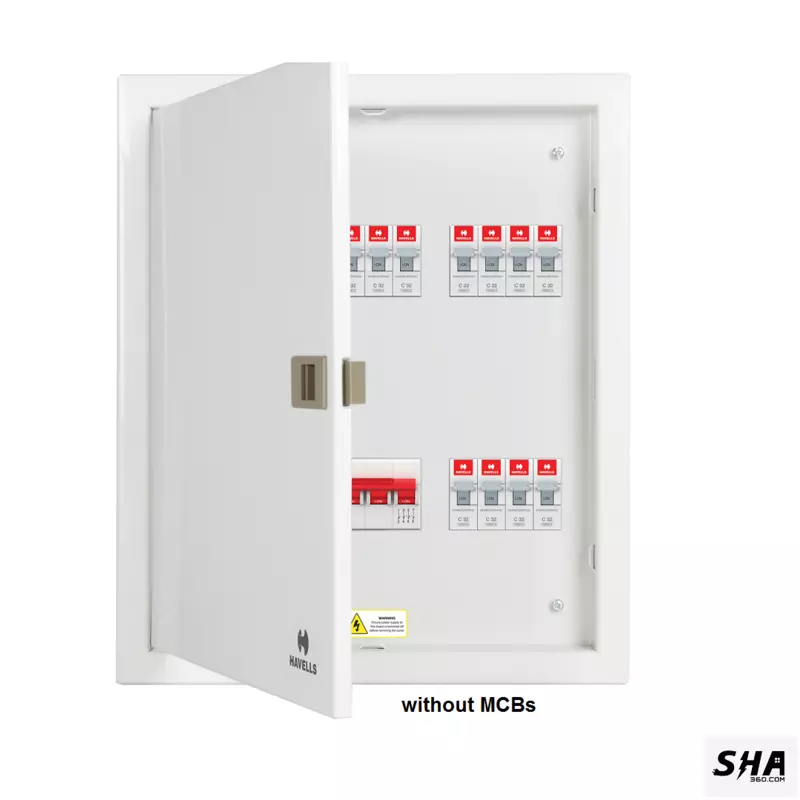

Havells Phase Selector Horizontal 4 Quadrant DB 4 Way (8+12) 40A Three Phase Distribution Board Double Door - DHDSCHDF04040
Specifications & Features:-
Part no: DHDSCHDR04040
No of modules provision: 20
Three Pole and Neutral, 4 way, 40A
With inbuilt 3nos of 40A/63A phase selector switches
with inbuilt 3nos of piano switches
Suitable for flush mounting and surface mounting
With 100A copper busbar for each phase
With neutral bar, earth bar and cable ties for cable management
Fully insulated busbar and neutral bar
Provision for 8W incomer, indicator RYB
Provision for MCB, Isolator, Rccb
Supplied with wire set, IP42
Easy and clean connections
Prevent accidentally touching of busbar
Packed dimensions: 53x48x16cm
Phase Selector TPN DB's are used to connect the main incomer on it and distribute the power to each load by using of MCB's, RCCB, and other protection device at commercial, industrial or residential place. It comes with rotary selector switches and indicator options in order to see the status of each phase and it is also possible to change phase line to other line if there is any interruption on the live phase line. The loads/MCBs/RCCBs rating must be designed and selected in accordance with IEC/IS standard based upon the application. Enclosure Trate, Tamp, protection ratings must be calculated and designed accordingly before installation for safety purpose. Use proper wirings size for incomer and outgoing cable as indicated Amps & Watts range and ensure proper earthing are done on entire loops properly to all meet safety clauses.
