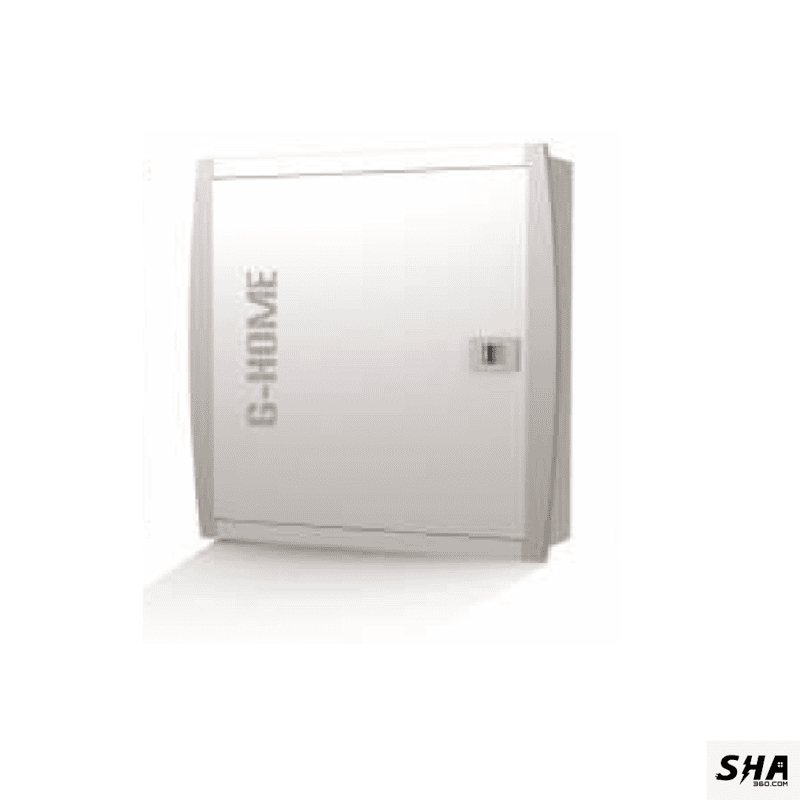

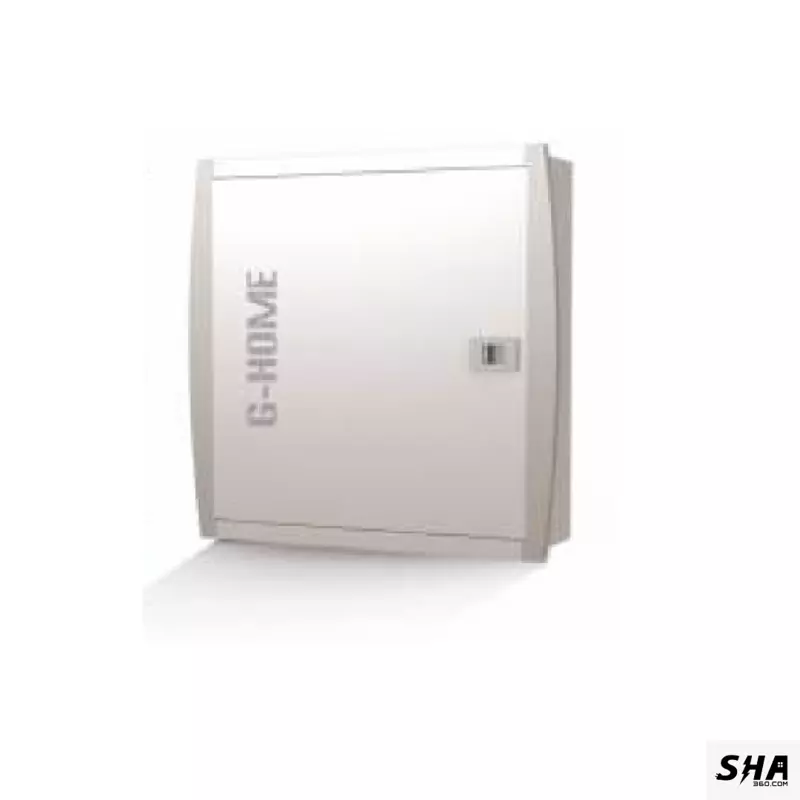

GM Modular 6 Way (8+18) TPN Distribution Board Double Door - GM-0824
Specifications & Features:-
Part no: GM-0824, G-Home
No of modules provision: 26
As per IS Standard
Suitable for Flush Mounting and Surface Mounting
With 40A Copper Busbar
Cable ties for Cable management
Fully shrouded Neutral bars
Pre-fitted masking sheet
IP 43 rated
Packed dimension: 45x37x15cm
TPN DB's are used to connect the main incomer on it and distribute the power to each load by using of MCB's, RCCB, and other protection device at commercial, industrial or residential place. The loads/MCBs/RCCBs rating must be designed and selected in accordance with IEC/IS standard based upon the application. Enclosure Trate, Tamp, protection ratings must be calculated and designed accordingly before installation for safety purpose. Use proper wirings size for incomer and outgoing cable as indicated Amps & Watts range and ensure proper earthing are done on entire loops properly to all meet safety clauses.
